What is a Geiger-Müller Counter, exactly?

The Geiger-Müller counter is, at its core, a radiation detector. It’s designed to detect ionizing radiation – that’s radiation with enough energy to knock electrons off atoms, creating ions. Think of it like a super-sensitive alarm system that triggers when it detects certain types of energetic particles passing through it.

But what exactly *is* ionizing radiation? It comes in various forms, most commonly:

• Alpha particles (α): These are relatively heavy, consisting of two protons and two neutrons (essentially a helium nucleus). They're easily stopped by a sheet of paper or even your skin.
• Beta particles (β): These are high-energy electrons or positrons. They can penetrate further than alpha particles but are typically stopped by a thin sheet of aluminum.
• Gamma rays (γ): These are high-energy photons (electromagnetic radiation), like X-rays but generally with even higher energy. They're highly penetrating and require thick shielding, like lead or concrete, to significantly reduce their intensity.
• X-rays: Similar to gamma rays, but usually with lower energy. They are used in medicine for imaging, but can also be found in some industrial applications.

Geiger counters are particularly good at detecting these types of radiation. But how do they actually do it?

The Inner Workings: A Step-by-Step Guide

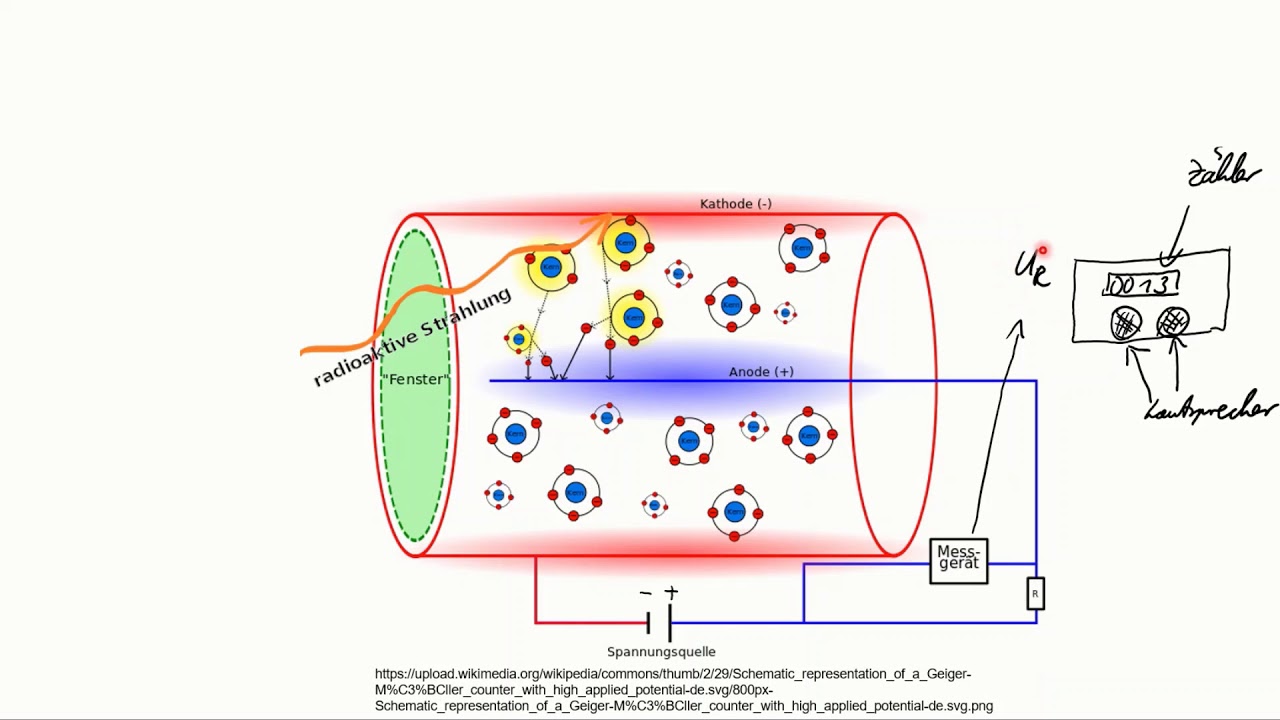

The heart of the Geiger counter is the Geiger-Müller tube itself. Let's break down its components and how they work together:

1. The Tube: The tube is typically a sealed glass or metal cylinder filled with a low-pressure inert gas, such as argon or neon, often mixed with a quenching gas like a halogen.
2. The Anode: A thin wire runs along the central axis of the tube. This wire is the anode and is positively charged with a high voltage (typically several hundred volts).
3. The Cathode: The tube's outer wall (or a metal cylinder inside the tube) acts as the cathode and is negatively charged or grounded.
4. The Mica Window (Optional): Some tubes have a thin mica window at one end. This allows alpha and beta particles, which have limited penetration power, to enter the tube more easily. Tubes designed for gamma and X-ray detection usually don't need a window, as these rays can penetrate the tube walls.

Now, let's see what happens when radiation enters the tube:

1. Ionization: When ionizing radiation (an alpha particle, beta particle, gamma ray, or X-ray) enters the tube, it collides with the gas atoms inside. These collisions knock electrons off the gas atoms, creating positive ions and free electrons. This is the ionization process.
2. The Avalanche Effect: The electric field created by the high voltage between the anode and cathode is very strong. The free electrons are accelerated towards the positively charged anode wire. As these electrons zip through the gas, they collide with other gas atoms, causing further ionization. This creates a chain reaction, or an avalanche, of electrons.
3. Pulse Generation: This avalanche of electrons quickly reaches the anode wire, creating a short, sharp pulse of current. This pulse is amplified by the electronics connected to the tube.
4. The "Click": The amplified pulse is then converted into an audible "click" by a speaker, or displayed as a count on a digital display. Each click represents a single ionization event within the tube.
5. Quenching: After the avalanche, the positive ions, being much heavier than the electrons, drift slowly towards the cathode. If left unchecked, these ions could cause secondary avalanches upon reaching the cathode, leading to continuous discharge. This is where the quenching gas comes in. The quenching gas absorbs energy from the positive ions, preventing them from causing further ionization and quickly ending the discharge. This allows the tube to be ready for the next ionization event.

What does the counter tell me?

The Geiger counter primarily provides a count rate – the number of clicks (or counts) per unit of time (e.g., counts per minute or CPM). This count rate is proportional to the intensity of the radiation field. A higher count rate indicates a stronger radiation field. However, it’s important to understand that a Geiger counter typically doesn’t identify the type of radiation. It simply registers the presence of ionizing radiation.

Some more sophisticated Geiger counters can provide a measure of dose rate, usually in units of microSieverts per hour (µSv/h). The Sievert is a unit of radiation dose that takes into account the biological effects of radiation. This is a more useful measure for assessing the potential health risks of radiation exposure.

Why is this relevant to tourists and expats in Germany?

While Germany is generally a safe country with regards to radiation levels, there are a few situations where knowledge of Geiger counters and radiation awareness can be beneficial:

• Chernobyl Legacy: The Chernobyl disaster in 1986 affected parts of Europe, including Germany. Some areas, particularly in Bavaria, still have elevated levels of Cesium-137 in the soil, especially in forests and wild mushrooms. While the risk is generally low, knowing how to use a Geiger counter can be useful if you plan on foraging for mushrooms or spending a lot of time in heavily forested areas. Always follow local advisories regarding food safety in these areas.
• Uranium Mining History: East Germany had a significant history of uranium mining, particularly in the Erzgebirge region. While extensive remediation efforts have been undertaken, some residual radiation may still be present in certain areas. Understanding radiation safety and being able to interpret Geiger counter readings can be helpful if you are exploring these areas. Look for information centers detailing the history of mining activities.
• Medical Treatments: If you are undergoing medical treatments involving radiation, such as X-rays or radiation therapy, understanding the basics of radiation and how it is measured can help you better understand your treatment plan and discuss any concerns with your doctor.
• Nuclear Power Plants: Germany has several nuclear power plants. While these plants are subject to strict safety regulations, knowing the basics of radiation and having a Geiger counter (though not essential) can provide an extra layer of awareness. Remember that these plants are constantly monitored, and any deviations from normal radiation levels would be immediately reported by the authorities.
• Historical Sites: Some museums and historical sites related to nuclear research or World War II may have exhibits involving radioactive materials. While these materials are typically safely contained, understanding the principles of radiation detection can enhance your experience.

A Word of Caution

While Geiger counters are useful tools, it’s important to remember that they don’t replace professional radiation monitoring. If you suspect that you are in an area with high levels of radiation, contact the local authorities. Relying solely on a personal Geiger counter in a potentially hazardous situation can be dangerous. Treat any elevated reading with respect and seek expert advice.

Furthermore, interpreting Geiger counter readings requires some knowledge and understanding. A slightly elevated reading might not necessarily indicate a significant health risk. Natural background radiation varies depending on location and altitude. Factors like granite buildings or even some types of fertilizers can contribute to background radiation levels. Familiarize yourself with typical background radiation levels in your area to better interpret your Geiger counter readings.
