The H-Pfostenträger 91 x 91 x 600 mm, often translated as "H-post anchor" or "H-post support," is a crucial component in many construction projects, particularly those involving outdoor structures. This informational guide provides a comprehensive overview of this specific type of post anchor, focusing on its characteristics, applications, installation, and factors to consider when choosing one. Whether you're an expat new to German building standards, a homeowner undertaking a DIY project, or simply looking for clarity, this article aims to offer practical and accurate information.

What is an H-Pfostenträger 91 x 91 x 600 mm?

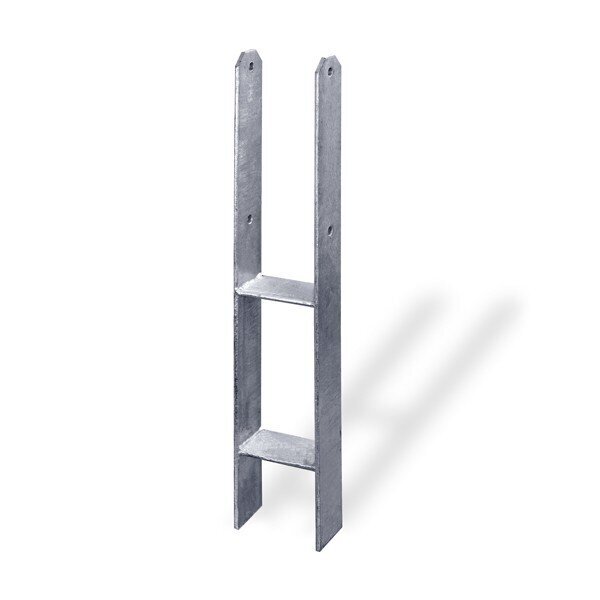

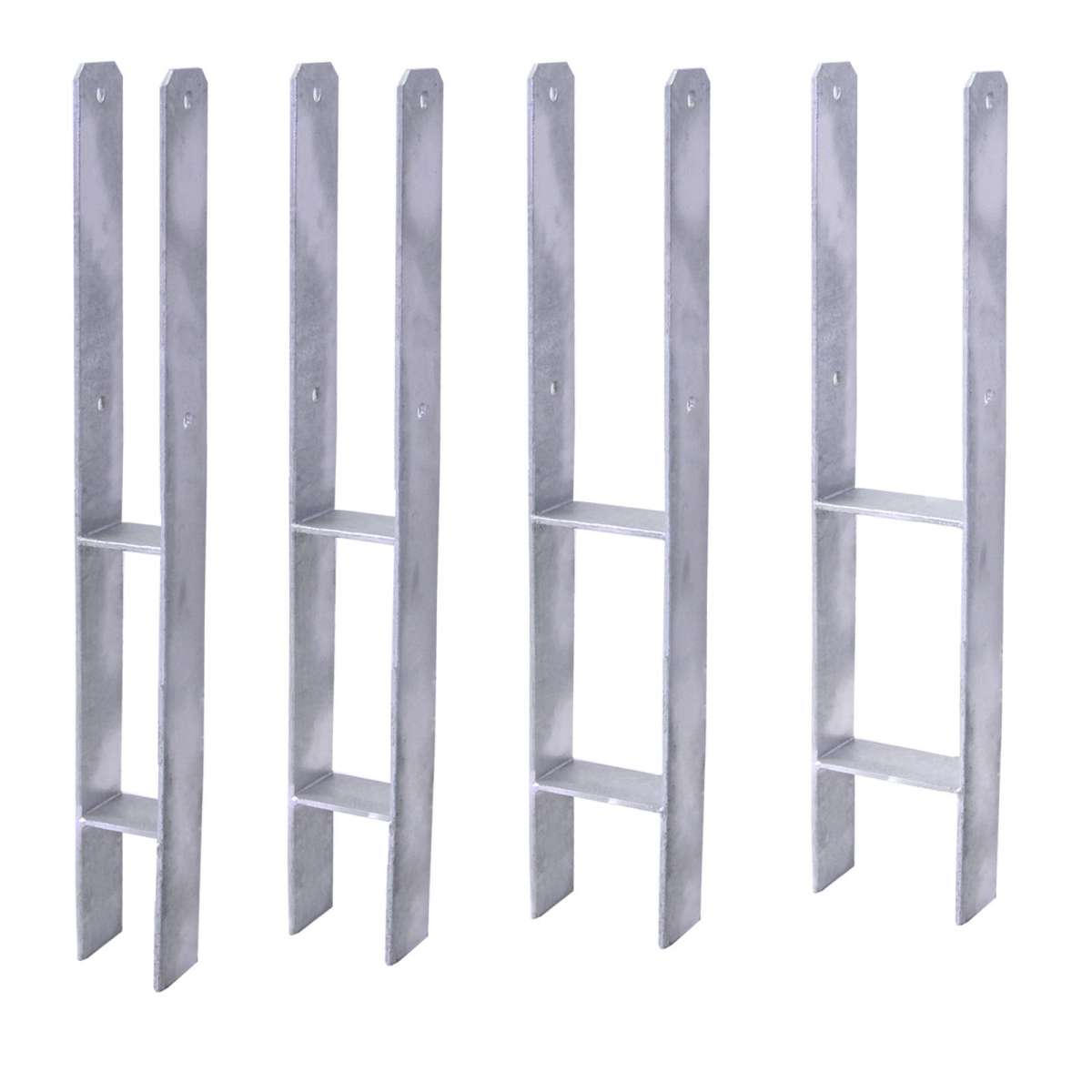

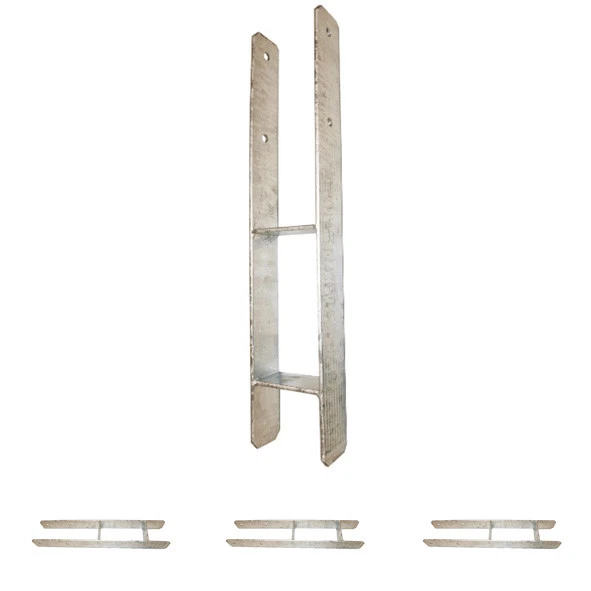

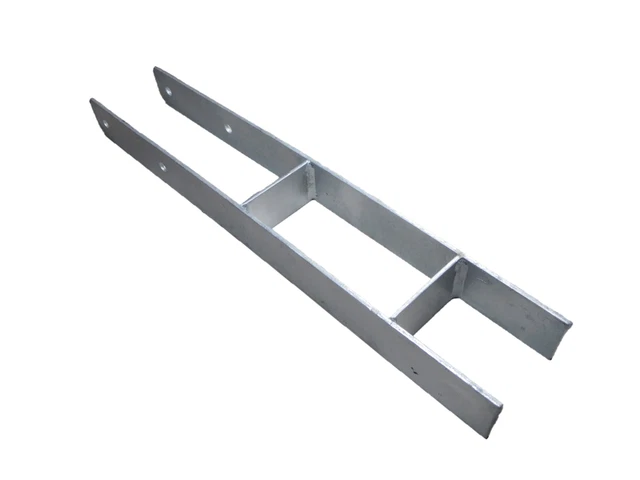

The H-Pfostenträger 91 x 91 x 600 mm is a steel anchor designed to firmly secure wooden posts into concrete foundations. The "H" shape refers to the two vertical steel plates that cradle the wooden post. The dimensions "91 x 91 mm" indicate the internal width of the H-profile, meaning it's designed for a post with a nominal size of 91 x 91 mm. The "600 mm" refers to the total length of the steel anchor, which determines how deeply it will be embedded in the concrete.

Key Features:

• H-Shape: Provides a stable and secure connection to the wooden post.
• 91 x 91 mm Internal Width: Specifically designed for posts of this size. Using a post of a different size will compromise the stability and security of the structure.
• 600 mm Length: Ensures sufficient embedment in the concrete for stability. A deeper embedment generally provides greater resistance to uplift forces (e.g., wind).
• Steel Construction: Typically made from galvanized steel for corrosion resistance, ensuring longevity even in outdoor environments. The thickness of the steel is also important for structural integrity.
• Pre-Drilled Holes: The vertical plates feature pre-drilled holes for easy and secure fastening of the wooden post using bolts or screws.

Common Applications

H-Pfostenträger 91 x 91 x 600 mm are commonly used in a variety of outdoor construction projects, including:

• Carports: Providing stable support for carport posts.
• Pergolas: Anchoring the pergola's supporting columns.
• Fences: Securely mounting fence posts, offering greater stability than simply setting the post directly in concrete.
• Playground Equipment: Providing a safe and secure foundation for playground structures.
• Raised Garden Beds: Supporting the corners of raised garden beds.
• Verandas and Decks: Providing a solid base for structural posts.

The use of H-Pfostenträger provides a significant advantage over directly setting wooden posts in concrete. Direct contact with concrete promotes rot, significantly shortening the lifespan of the wooden post. The H-Pfostenträger elevates the wood, preventing direct contact with the moisture in the concrete and soil.

Installation Guide

Installing an H-Pfostenträger correctly is crucial for the stability and longevity of your structure. Here's a step-by-step guide:

1. Planning and Preparation:
   • Determine the exact location of each post. Accurate measurements are essential.
   • Excavate holes for the concrete foundations. The size of the hole depends on the required foundation depth and width, which is determined by the load the post will bear and the local soil conditions. Consult local building codes for specific requirements.
   • Create a form for the concrete. This can be made from wood or cardboard. Ensure the form is level and properly supported.
2. Positioning the H-Pfostenträger:
   • Place the H-Pfostenträger in the center of the concrete form.
   • Crucially, ensure the H-Pfostenträger is perfectly vertical and aligned with the intended post position. Use a spirit level to check for plumb. You can use temporary bracing to hold it in place while the concrete sets.
   • Consider using a jig or template to ensure consistent placement and alignment of multiple H-Pfostenträger.
3. Pouring the Concrete:
   • Mix the concrete according to the manufacturer's instructions.
   • Pour the concrete into the form, ensuring the H-Pfostenträger remains in its correct position.
   • Use a vibrating tool or rod to remove air bubbles from the concrete. This will improve its strength and durability.
   • Smooth the top of the concrete and create a slight slope away from the H-Pfostenträger to prevent water from pooling around the base.
4. Curing the Concrete:
   • Allow the concrete to cure completely according to the manufacturer's instructions. This usually takes several days. Keep the concrete moist during the curing process to prevent cracking.
5. Attaching the Wooden Post:
   • Once the concrete has cured, carefully position the wooden post inside the H-Pfostenträger.
   • Align the post and ensure it is plumb.
   • Using appropriate bolts or screws (typically galvanized or stainless steel), securely fasten the post to the H-Pfostenträger through the pre-drilled holes. Use washers to distribute the load and prevent the bolt heads from sinking into the wood.
   • Tighten the bolts securely, but avoid over-tightening, which could damage the wood or the H-Pfostenträger.

Important Safety Note: Always wear appropriate safety gear, including safety glasses, gloves, and sturdy footwear, when working with concrete and power tools. Consult with a qualified structural engineer or builder if you are unsure about any aspect of the installation process.

Factors to Consider When Choosing an H-Pfostenträger

Selecting the right H-Pfostenträger is crucial for the success and safety of your project. Here are some important factors to consider:

• Post Size: The H-Pfostenträger must be appropriately sized for the wooden post. The 91 x 91 mm dimension of this specific model makes it suitable for 91 x 91 mm posts. Using a post that is too small will result in an unstable connection, while a post that is too large will not fit.
• Load-Bearing Capacity: Determine the weight and forces the post will need to support. Select an H-Pfostenträger with a sufficient load-bearing capacity. Consult the manufacturer's specifications for load ratings.
• Material and Finish: Galvanized steel is the most common and recommended material for outdoor applications due to its corrosion resistance. The thickness of the galvanization layer is also important. Some H-Pfostenträger are also available with a powder-coated finish for added protection and aesthetic appeal.
• Steel Thickness: The thickness of the steel plates is a crucial factor in determining the strength and durability of the H-Pfostenträger. Thicker steel will provide greater resistance to bending and deformation under load.
• Anchor Length: The 600 mm length provides a substantial embedment depth in the concrete. However, depending on the soil conditions and the expected loads, a longer anchor might be necessary.
• Base Plate (Optional): Some H-Pfostenträger designs include a base plate that is welded to the bottom of the "H". This base plate provides additional stability and helps to distribute the load over a wider area of the concrete foundation.
• Manufacturer and Certification: Choose H-Pfostenträger from reputable manufacturers that comply with relevant safety standards and certifications (e.g., DIN standards).
• Price: While price is a factor, prioritize quality and performance over cost. A cheaper, lower-quality H-Pfostenträger may compromise the stability and safety of your structure.

Alternatives to H-Pfostenträger

While H-Pfostenträger are a common and effective solution, other options are available for securing posts, depending on the specific application and desired aesthetic:

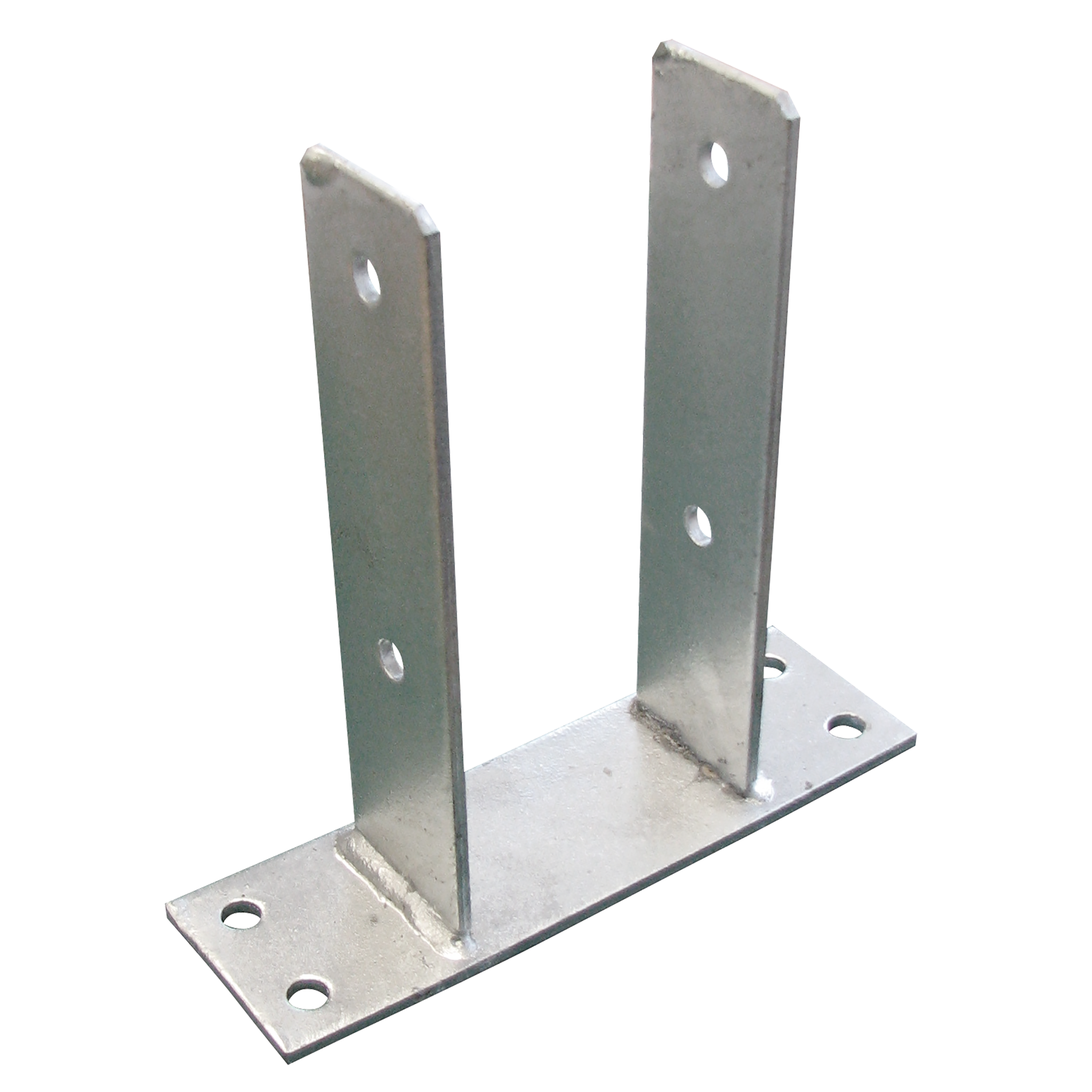

• U-Pfostenträger: Similar to H-Pfostenträger, but with a "U" shape instead of an "H". They are suitable for lighter loads.
• Einschlaghülsen (Drive-in Post Anchors): These are driven directly into the ground. They are suitable for fences and other lightweight structures in stable soil. They are generally not recommended for load-bearing applications.

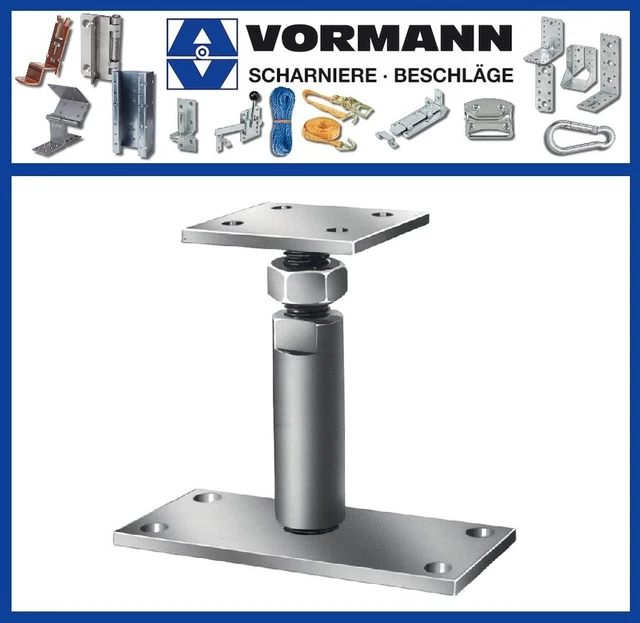

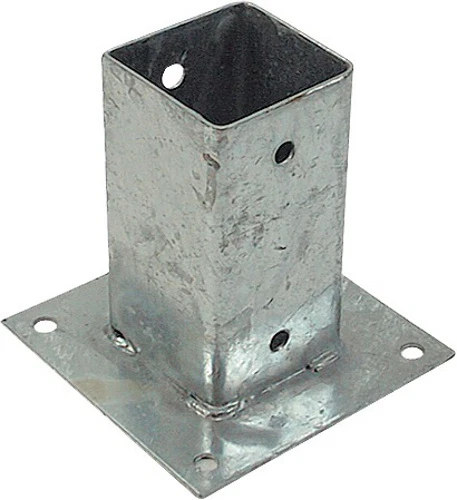

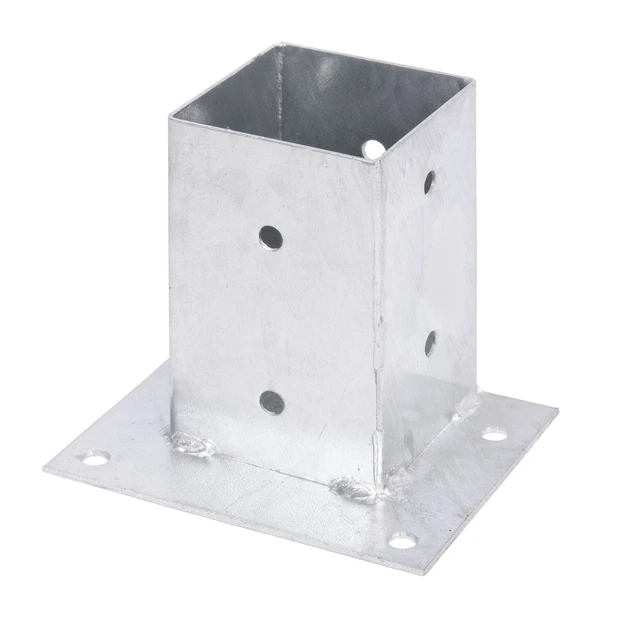

• Aufschraubbare Pfostenträger (Bolt-Down Post Anchors): These are bolted to an existing concrete slab or foundation.

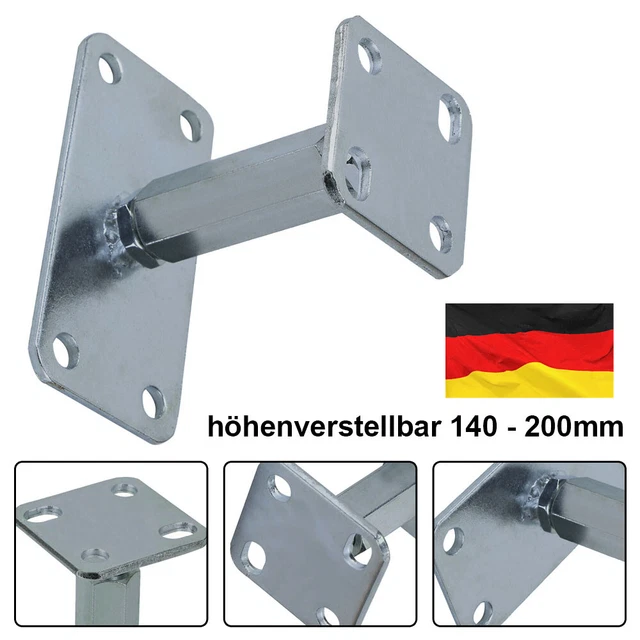

• Adjustable Post Supports: These allow for fine-tuning the height of the post after installation. They are useful for leveling structures on uneven ground.

Finding and Purchasing H-Pfostenträger in Germany

H-Pfostenträger are widely available at:

• Baumärkte (Home Improvement Stores): Obi, Bauhaus, Hornbach, and Toom are major chains that carry a wide selection of H-Pfostenträger.
• Eisenwarenhandlungen (Hardware Stores): Smaller, independent hardware stores often carry higher-quality products and offer more personalized service.
• Online Retailers: Amazon.de and other online retailers offer a convenient way to purchase H-Pfostenträger. Be sure to check customer reviews before making a purchase.
• Specialized Construction Supply Stores: These stores typically offer a wider range of options and expert advice.

When purchasing, be sure to specify the exact dimensions (91 x 91 x 600 mm) and the desired material (galvanized steel). Don't hesitate to ask for assistance from store staff if you have any questions about the suitability of a particular H-Pfostenträger for your project. Remember to compare prices and read product descriptions carefully before making a purchase.

By understanding the features, applications, installation process, and factors to consider when choosing an H-Pfostenträger 91 x 91 x 600 mm, you can ensure a successful and long-lasting construction project.
