Herzlich willkommen! You've decided to explore Germany (or perhaps another beautiful European country!) and are considering bringing a caravan, trailer, or bike rack. Excellent choice! Freedom and flexibility await. However, before you hit the road, it's crucial to understand how to connect your trailer's electrics to your vehicle. This guide focuses on the most common system: the 13-pin "E-Satz" (electrical kit) trailer hitch connection.

Understanding the E-Satz 13-Polig

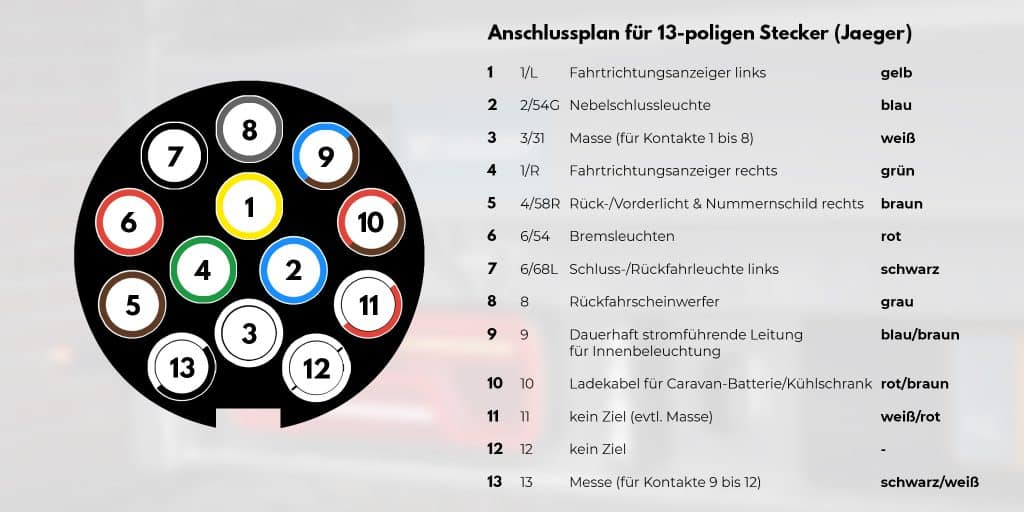

The 13-pin E-Satz is the standard for modern trailers and vehicles in Europe. It provides a comprehensive connection, powering not only the essential lights (indicators, brake lights, taillights) but also auxiliary functions like reversing lights, fog lights, and even a permanent 12V power supply, often used to charge a caravan's battery or run a fridge. Think of it as the "all-inclusive" package for trailer electrics.

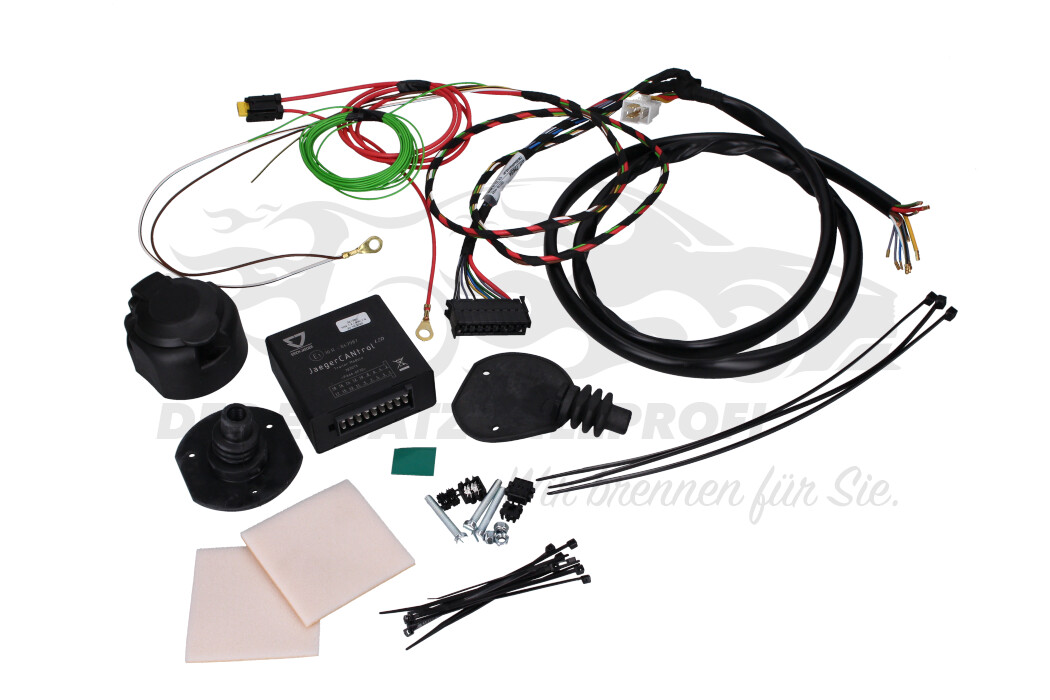

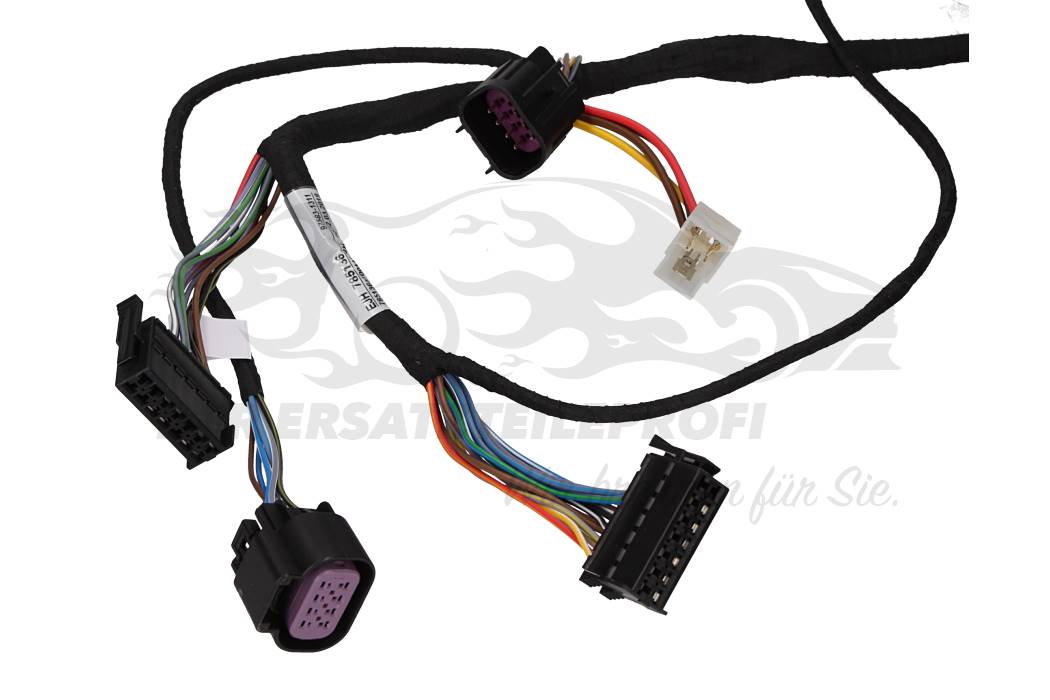

Why is it called "E-Satz?" E-Satz simply means "electrical set" or "electrical kit" in German. It refers to the complete set of wiring, connectors, and sometimes a control module that enables the trailer hitch's electrical functions.

Why Choose a 13-Pin Connector?

While older 7-pin systems exist, the 13-pin connector offers several advantages, especially for longer trips or caravans:

More Functionality: As mentioned, it supports reversing lights, fog lights, and a permanent 12V power supply – features unavailable on 7-pin systems.
Safety: Reversing lights significantly improve safety when maneuvering in reverse, especially in low-light conditions.
Convenience: The permanent 12V power supply keeps your caravan's battery charged while driving, ensuring your fridge stays cold and your lights work upon arrival.
Future-Proofing: The 13-pin connector is the modern standard, meaning it's more likely to be compatible with future trailers and vehicles.

Step-by-Step Guide to Connecting Your 13-Pin E-Satz

Connecting your 13-pin E-Satz is generally straightforward, but it's essential to follow the correct procedure to avoid damaging your vehicle's electrical system or causing safety hazards. Always turn off your vehicle's ignition before connecting or disconnecting the trailer.

Locate the Connector: Find the 13-pin socket on your vehicle's tow bar. It's usually located underneath or to the side of the tow ball.
Inspect the Connector: Check both the vehicle's socket and the trailer's plug for any dirt, corrosion, or damage. Clean them if necessary. A small wire brush or contact cleaner can be helpful.
Align the Connector: The plug and socket have a keyway system to ensure correct alignment. Look for the small notch or marker on both the plug and socket and align them.
Insert the Plug: Carefully insert the plug into the socket, ensuring it's fully seated. You should hear a slight "click" as the plug locks into place. Do not force the plug. If it doesn't go in easily, double-check the alignment.
Secure the Connection: Many 13-pin connectors have a locking mechanism. Twist the plug to secure it in place, preventing it from accidentally disconnecting during travel.
Test the Lights: This is the most crucial step! With the trailer connected, turn on your vehicle's ignition and test all the lights:
- Indicators (Left and Right): Check that both the trailer's and vehicle's indicators are flashing correctly.
- Taillights: Verify that both taillights are illuminated.
- Brake Lights: Have someone press the brake pedal while you check that both brake lights on the trailer are working.
- Fog Lights: If your trailer has fog lights, turn them on and check they are working correctly.
- Reversing Lights: Engage reverse gear (with the parking brake applied for safety!) and check that the reversing lights are illuminated.

Important Note: If any of the lights are not working correctly, do not drive with the trailer. It's illegal and dangerous. Troubleshoot the problem (see the troubleshooting section below) before setting off.

Troubleshooting Common Problems

Even with careful connection, problems can sometimes arise. Here are some common issues and how to address them:

No Lights Working:
- Check the Fuse: The first thing to check is the fuse in your vehicle's fuse box that controls the trailer electrics. Consult your vehicle's owner's manual to locate the correct fuse. A blown fuse is often the culprit.
- Check the Ground Connection: A poor ground connection can prevent the lights from working. Ensure the ground wire (usually brown) is securely connected to the vehicle's chassis.
- Check the Trailer Wiring: Inspect the wiring on the trailer for any damage, loose connections, or corrosion.
Some Lights Working, Others Not:
- Check the Bulbs: A blown bulb is a common cause. Replace the bulb with the correct type.
- Check the Wiring to the Affected Light: Inspect the wiring and connections specifically for the light that's not working.
Indicators Flashing Too Fast or Not at All:
- Check the Bulbs: Incorrect bulb wattage can cause this. Ensure you are using the correct bulbs for your trailer.
- Check the Trailer Wiring: A short circuit in the trailer wiring can also cause this issue.
Connector Problems:
- Clean the Contacts: Corrosion or dirt on the connector pins can prevent proper contact. Clean the pins with a wire brush or contact cleaner.
- Damaged Connector: If the connector is physically damaged, it may need to be replaced.

When in doubt, consult a qualified mechanic or trailer specialist. Electrical problems can be complex and potentially dangerous if not handled correctly.

Important Considerations for Foreign Tourists and Expats

When traveling in Europe with a trailer, keep these points in mind:

Regulations: Regulations regarding trailer towing vary from country to country. Check the specific rules for each country you plan to visit, including speed limits, weight restrictions, and licensing requirements. Your local automobile club or the embassy of each country can provide this information.
Vehicle Compatibility: Ensure your vehicle is rated to tow the weight of your trailer. Overloading your vehicle can be dangerous and illegal. Check your vehicle's owner's manual for towing capacity information.
Insurance: Your vehicle insurance may not automatically cover trailer towing. Check your policy and ensure you have adequate coverage. You may need to purchase separate trailer insurance.
Breakaway Cable/Chain: In many countries, it's mandatory to have a breakaway cable or chain connecting the trailer to the vehicle. This cable will automatically apply the trailer brakes if the trailer becomes detached from the vehicle.
Trailer Mirrors: Depending on the width of your trailer, you may need to install extended trailer mirrors to ensure adequate visibility.

Specific German Regulations (Example)

In Germany, for instance, the *StVZO* (Straßenverkehrs-Zulassungs-Ordnung – Road Traffic Licensing Regulations) outlines specific requirements for trailers. You'll need to ensure your trailer meets these requirements, including proper lighting, brakes, and a valid *Hauptuntersuchung* (HU) – a periodic technical inspection. Ignoring these regulations can result in fines or even the impoundment of your trailer.

Disconnecting the 13-Pin E-Satz

Disconnecting is just as important as connecting. Follow these steps:

Turn Off the Ignition: Ensure your vehicle's ignition is turned off.
Unlock the Connector: If your connector has a locking mechanism, unlock it by twisting the plug.
Pull Out the Plug: Gently pull the plug straight out of the socket. Do not yank or twist the plug.
Store the Plug: Store the trailer's plug in a safe and dry place to protect it from damage and corrosion. Some trailers have a designated holder for the plug.
Protect the Socket: Consider using a protective cap to cover the vehicle's socket when not in use. This will help prevent dirt and moisture from entering the socket.

Final Thoughts

Connecting a 13-pin E-Satz is a relatively simple process, but it's crucial to do it correctly to ensure safety and avoid damaging your vehicle's electrical system. By following this guide and taking the necessary precautions, you can enjoy your travels with your trailer or caravan with peace of mind. Always prioritize safety and consult a professional if you have any doubts. Happy travels (Gute Reise!)!
